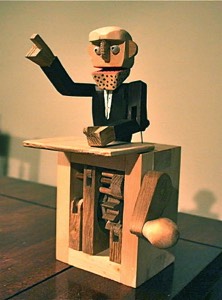

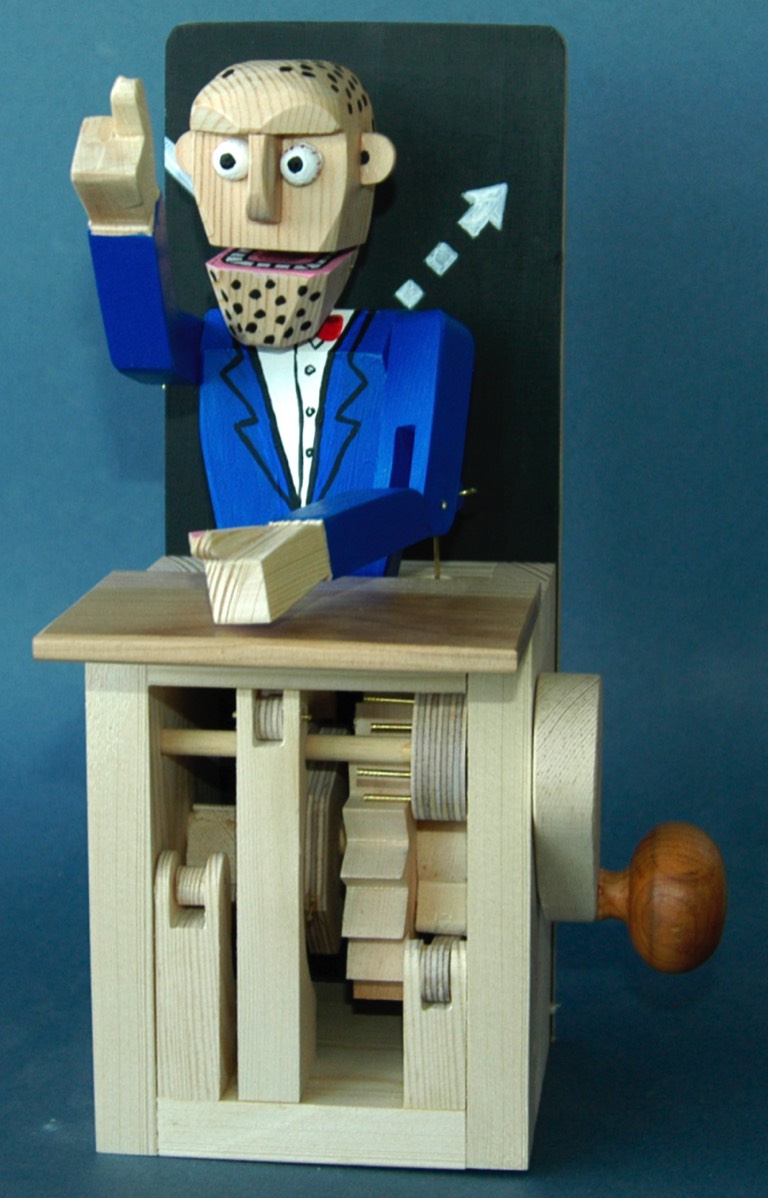

I have created the cutting pattern and full photographic instructions for making this automaton.

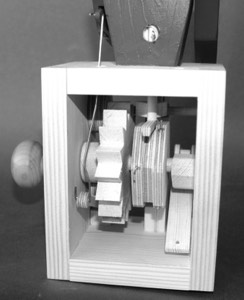

The mechanism makes an excellent starting point for many other automata of your own design just by changing the cams of including more gears.
The gear set-up is the one that I use in most of my automata.

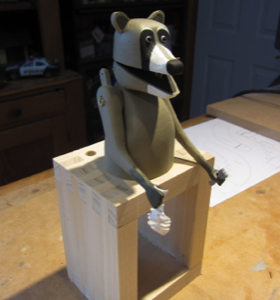

See the bottom of the page for examples that other people shave made and also derivative automata that have been made using the plans as a base.
Photographs of all stages are included for simple construction.
In My Humble Opinion
You can make this automata. It could be made with hand tools but a bandsaw or scroll saw would make things easier.
PATTERNS and INSTRUCTIONS
I have written a 31 page instruction and full size pattern book for this automaton.
The project is suitable for beginners with a little patience. It would be possible to make it with hand tools but I recommend that you have access at least a scroll saw (or bandsaw) and a power drill.
The instructions contain full assembly details with 87 photographs and illustrations. The patterns are full size.
Payment can be made by PayPal.
There is no need to have an account to pay securely with credit card through PayPal and they handle currency exchange very efficiency. You pay in £ and get charged in your own currency.
Important: On the successful payment page click the "Return to Merchant" button to be directed to the download page.
Should any problems occur just email me and I will make sure that you get your patterns.
The following prices are for personal hobbiest use. For more information on commercial or educational use please email me at firstname.lastname@example.org
IMPORTANT - THIS AUTOMATON CONTAINS SHARP PARTS. IT IS NOT A CHILDREN’S TOY
Purchase downloadable .pdf
£9.99 (approx. US$16)
YOU DO NOT NEED A PAYPAL ACCOUNT TO PAY USING A CREDIT CARD.
These buttons will transfer you to the Paypal site.
* * * * PLEASE ENSURE THAT YOUR PAYPAL EMAIL IS UP TO DATE * * * *
Important: I will email you the patterns. I will do this as soon as I am able but it may take up to 48 hours. If you do not receive them please email me at email@example.com

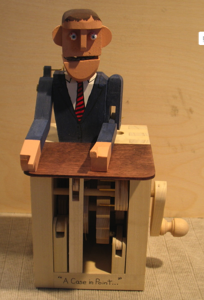

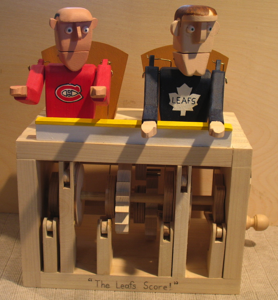

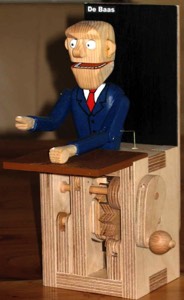

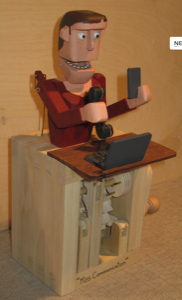

Automata that customers have made after purchasing this pattern.
