Making Jewel Thief

  • My Image

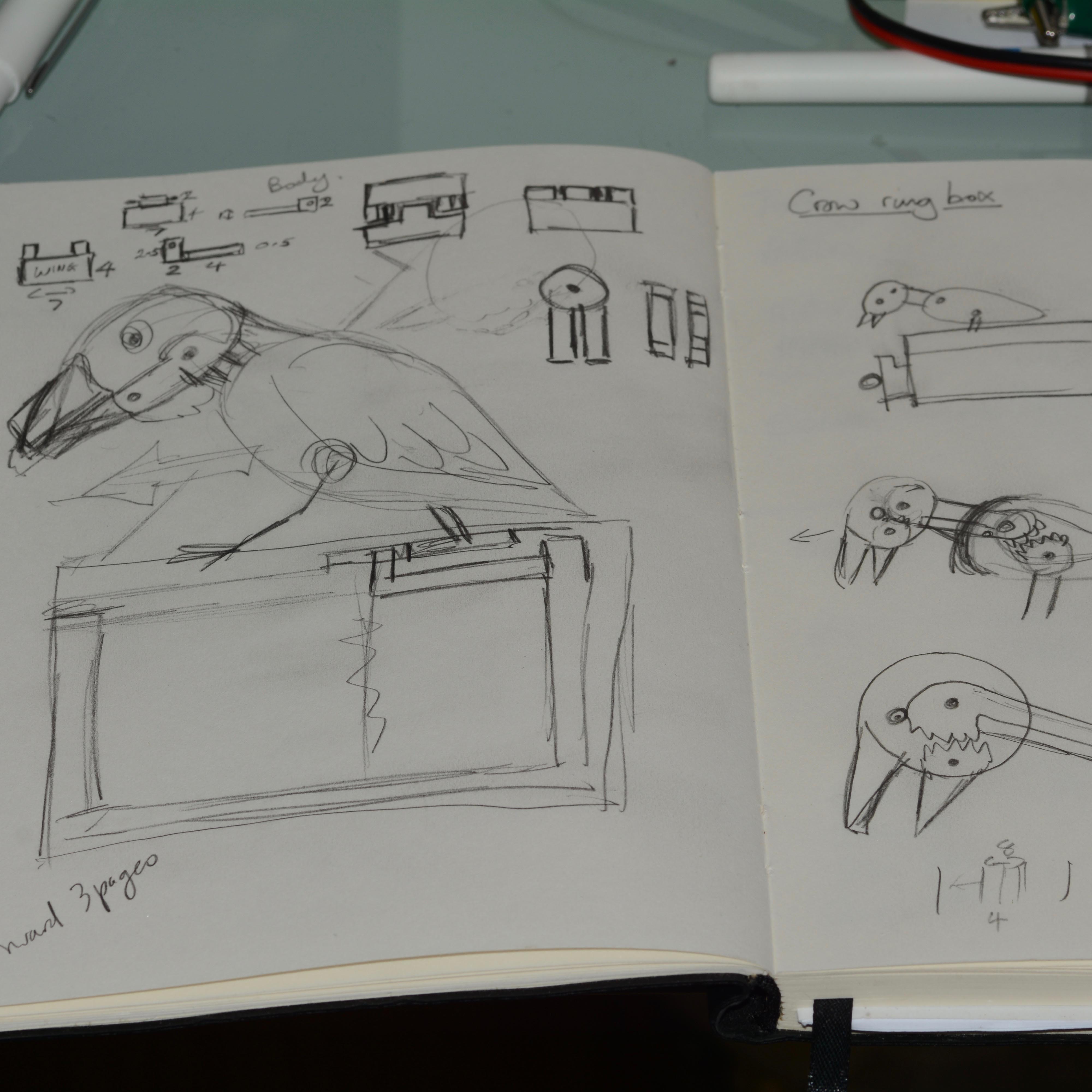

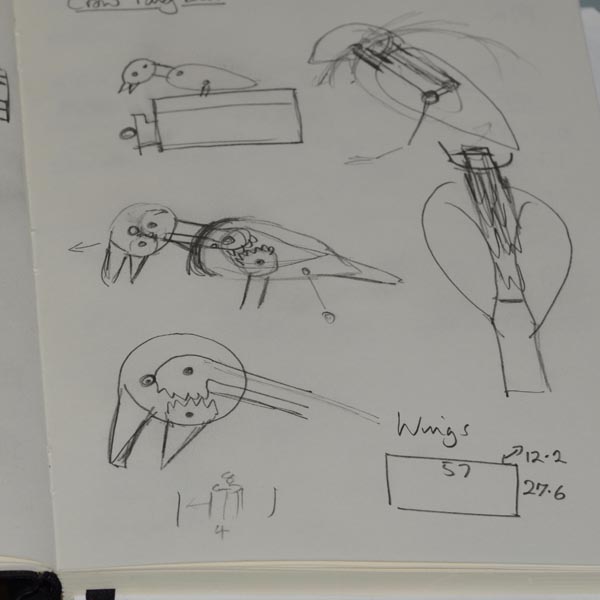

    Rough ideas in pencil, shapes and mechanisms

  • My Image

    Developing the idea. Hinge designs

  • My Image

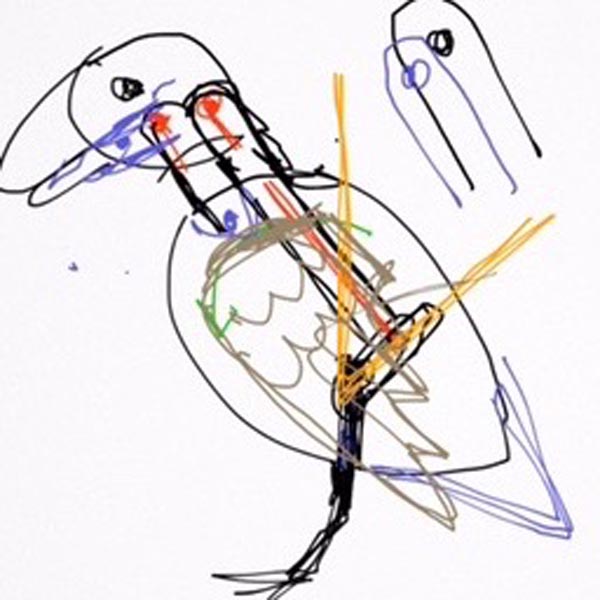

    Final mechanism idea using Inkflow app on the iPad

  • My Image

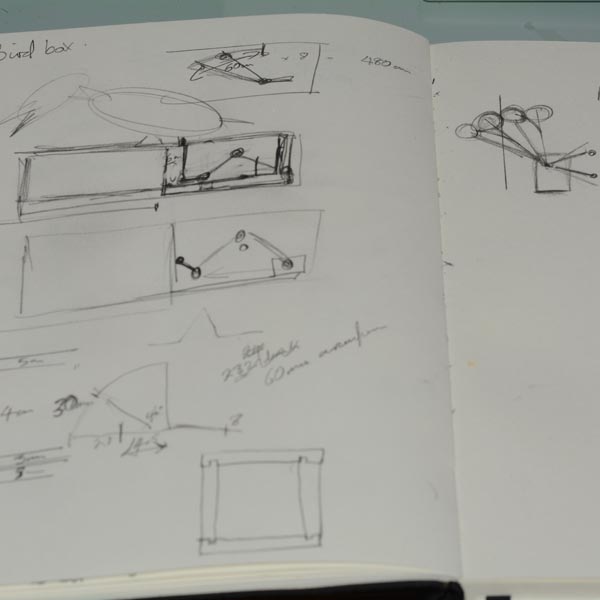

    More sketches around the box mechanism

  • My Image

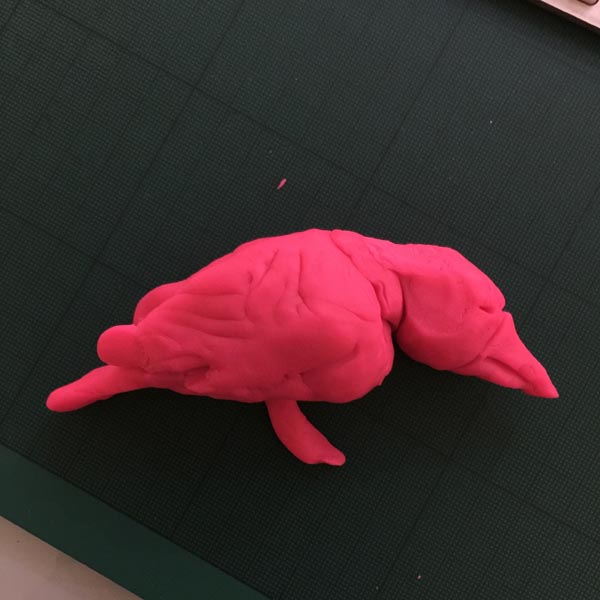

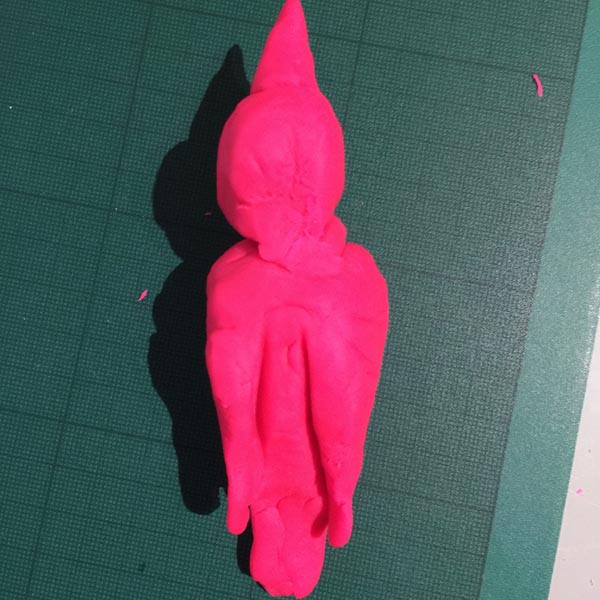

    Play-Doh used to work up shape and size

  • My Image

    Top view of Play-Doh model.

  • My Image

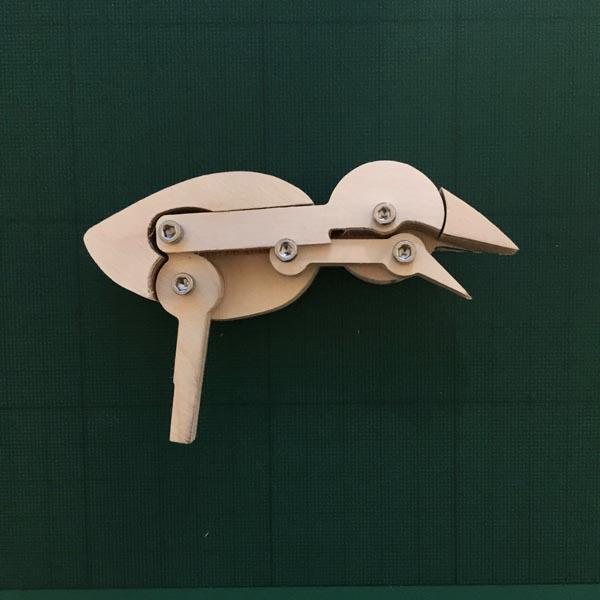

    Initial ideas on mechanism made in plywood to test principle.

  • My Image

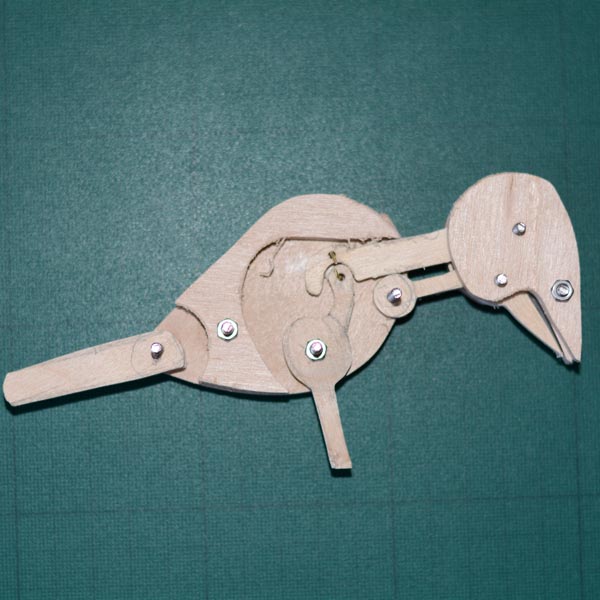

    Improved design in plywood.

  • My Image

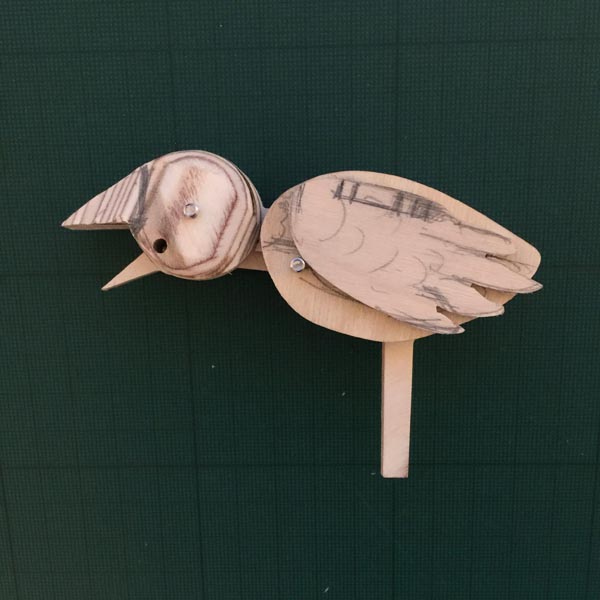

    developing design, wing size and positioning

  • My Image

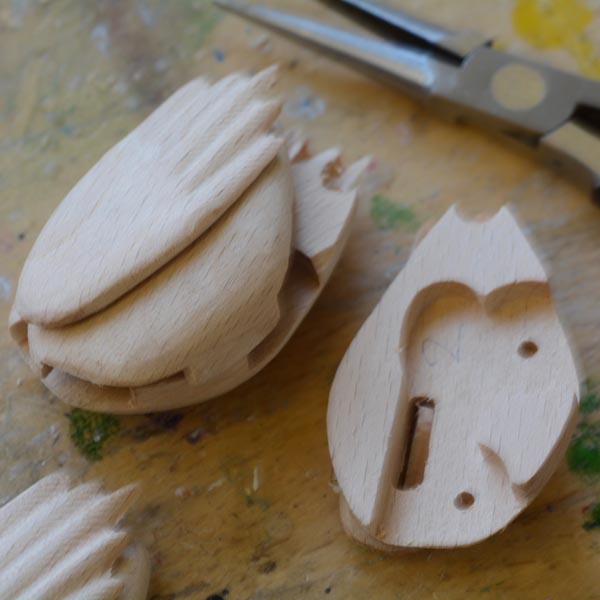

    body and wings designed in Blender and inc cut.

  • My Image

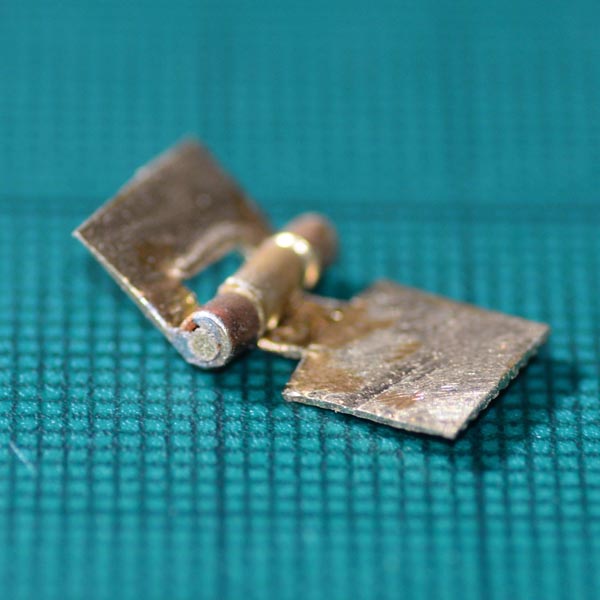

    Tiny brass hinges made from 0.3mm brass plate

  • My Image

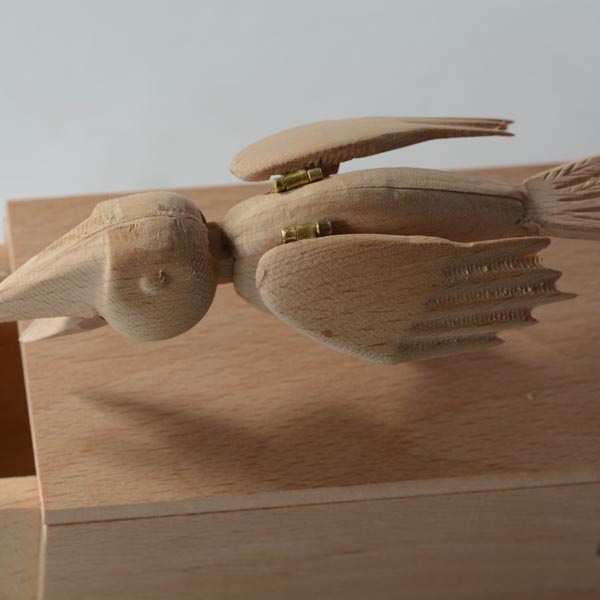

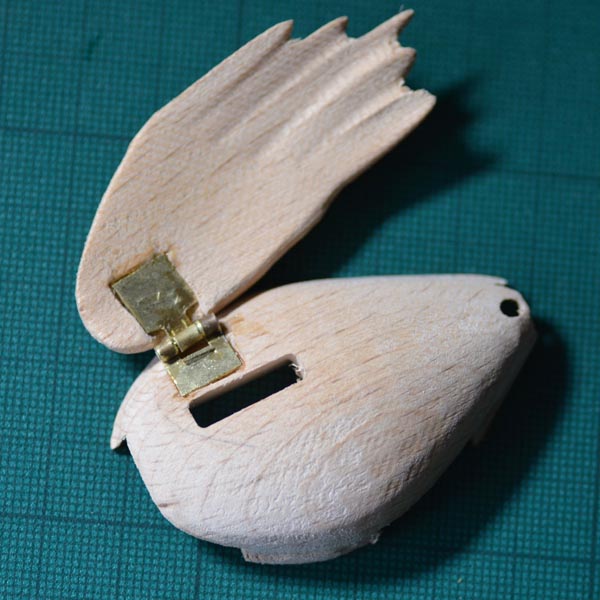

    Wing hinged to body.

  • My Image

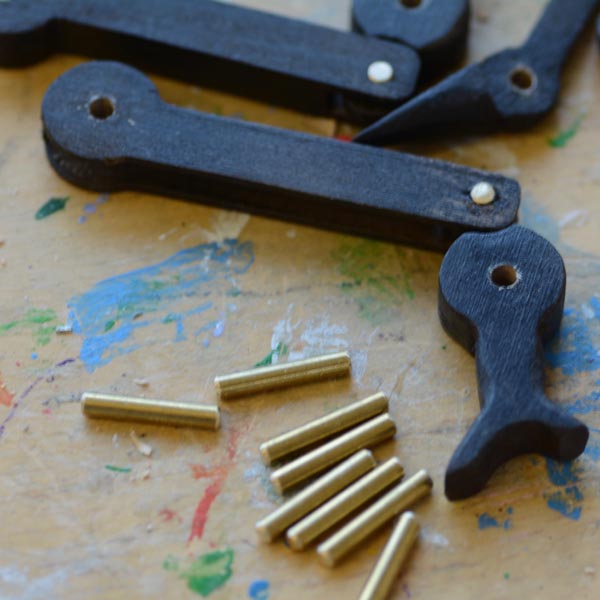

    Internal mechanism painted with wax finish acrylic varnish together with 3mm brass pins for axles

  • My Image

    Bird mechanism in place.

  • My Image

    Prototype bird tested for functionality.

  • My Image

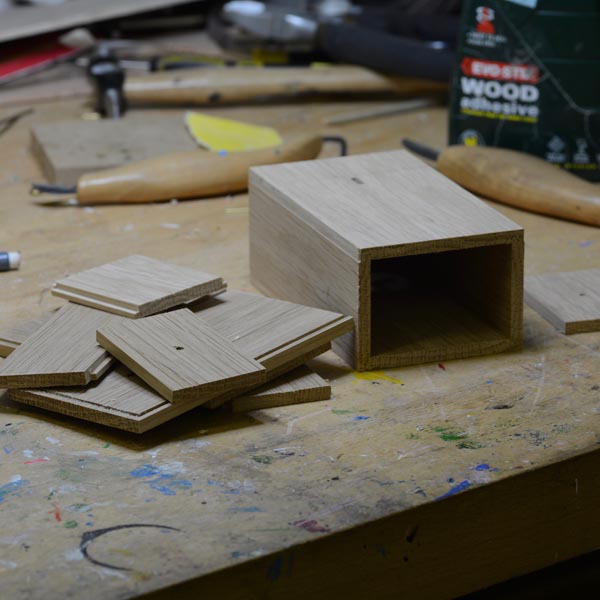

    Box cut from oak.

  • My Image

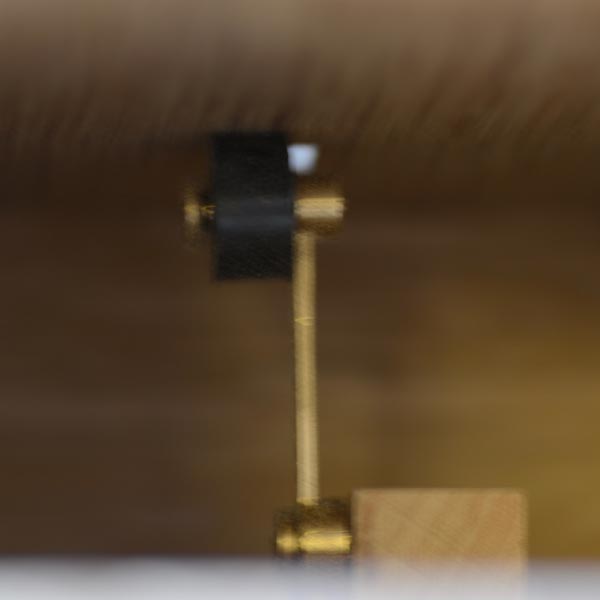

    Brass mechanism with nylon roller inside box.

  • My Image

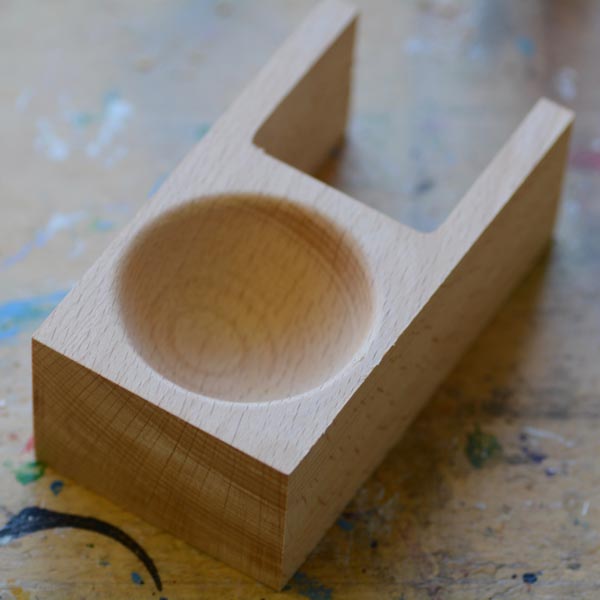

    Jewellery tray cut from solid beech.

  • My Image

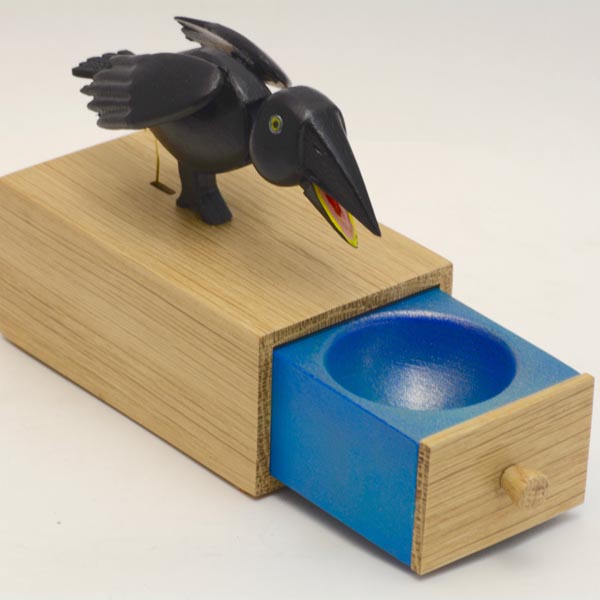

    Finished automaton. Tray painted with 2 shades of blue acrylic, finished with a gold misting.

    More pictures of finished piece here.
