Romance

automata

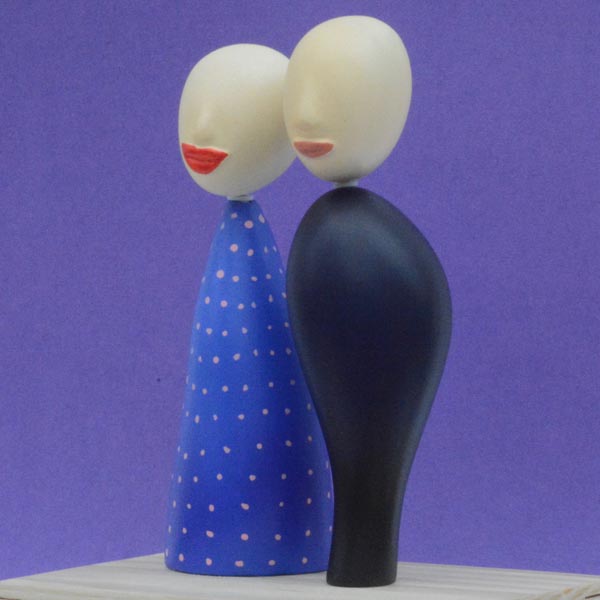

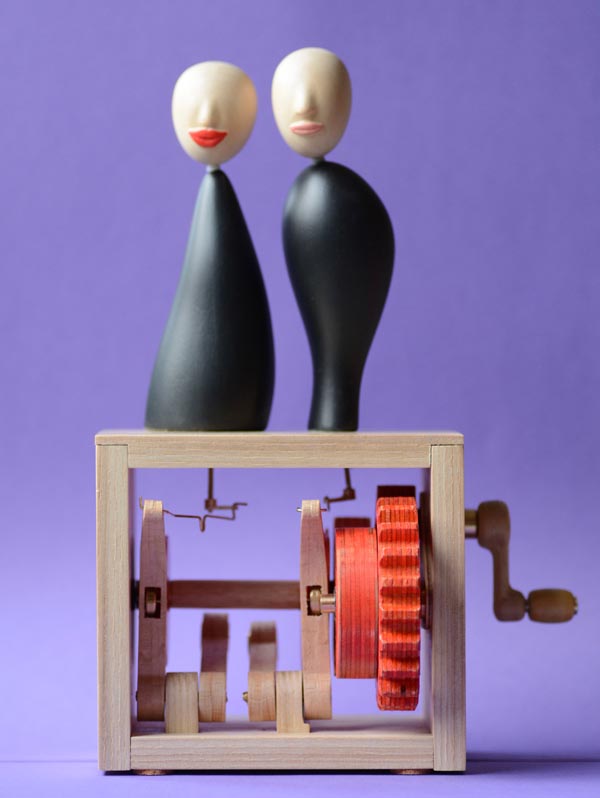

Romance is a elaborated version of kissing automata. The figures tentatively look at each other before kissing.
Finished to a high standard with an ash wood case, parts made from lime, beech, box and birch ply.
Fittings are brass with nylon and Teflon bushings for smooth running.
The bodies, made from lime wood, are finished with 2 coats of gesso followed by acrylic paint, 2 coats of gloss lacquer.
The heads are painted with 3 coats of gloss lacquer followed by a coat of matt varnish giving a very smooth finish.

Height 22cms (8.5 inches)


Available for purchase

  • My Image

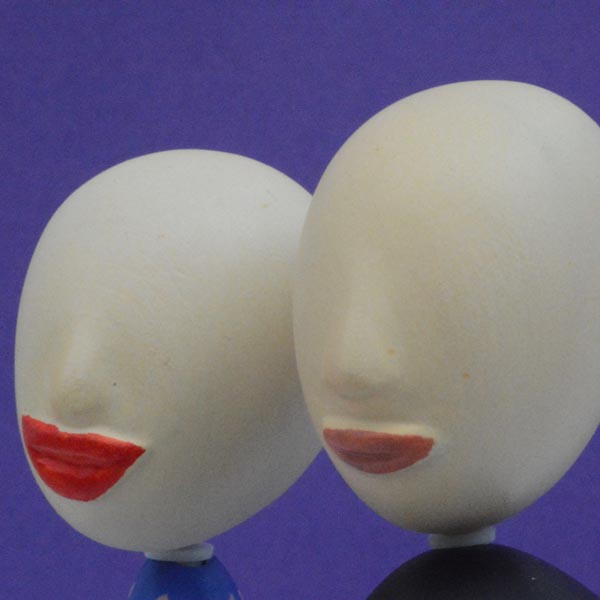

    The heads have small teflon bushes for low friction movement.

  • My Image

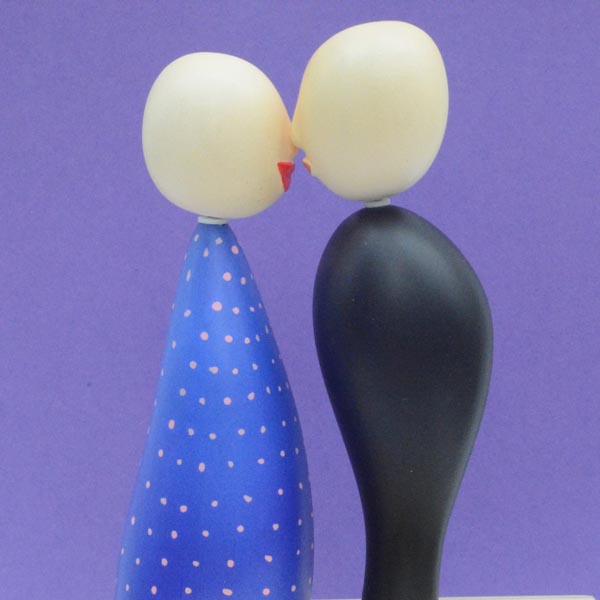

    The lady’s head turns to kiss before the man’s.

  • My Image

    The heads and bodies are stylised. Other colours are possible. These heads are natural wood finished with acrylic lacquers and flat finish.

  • My Image

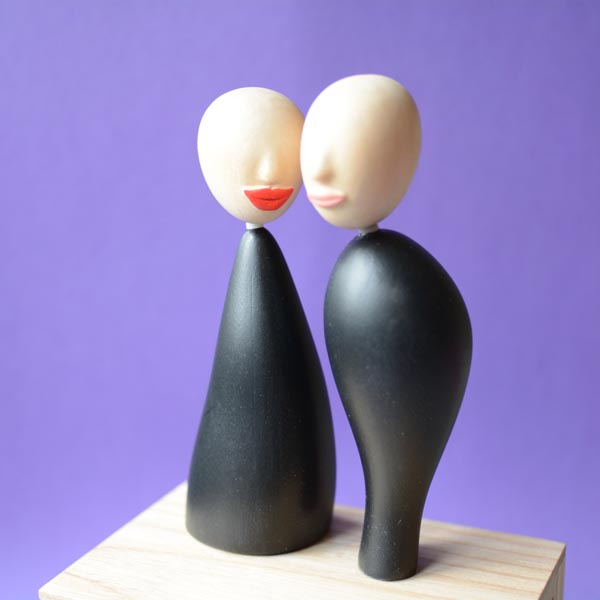

    Other colour themes. This one with painted heads - see below.

  • My Image

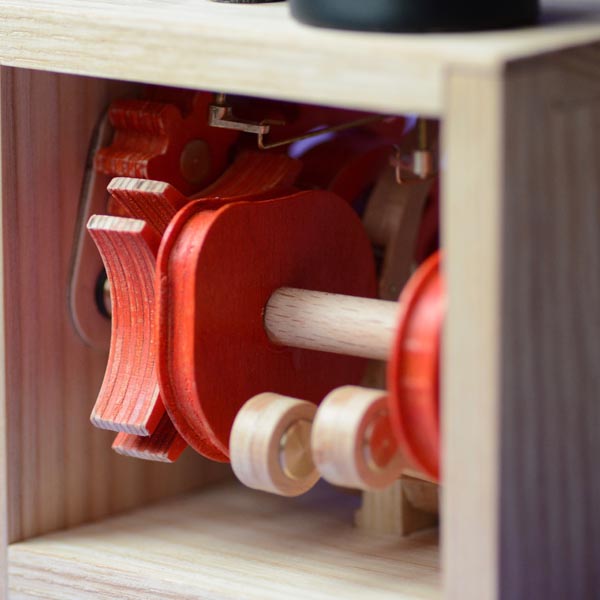

    Gears and a geneva wheel drive the 2 cams. The cams and cam levers are made from laminations of beech for added strength.

  • My Image

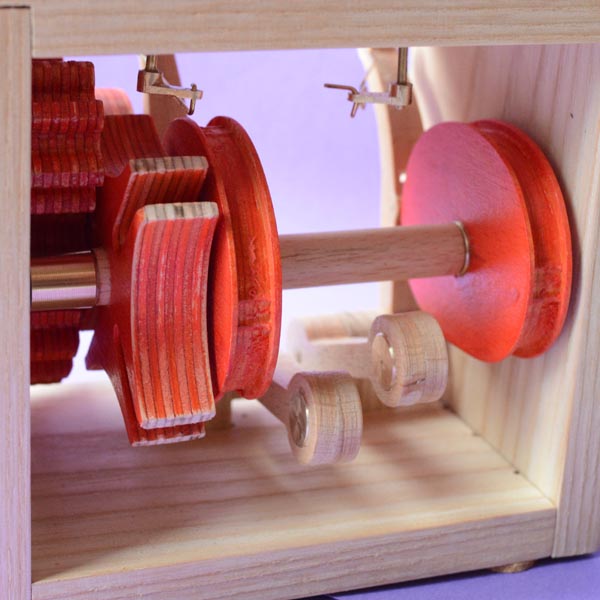

    The cam levers are counter weighted against the cams. Small brass wheels run between the cam lever and the cam.

  • My Image

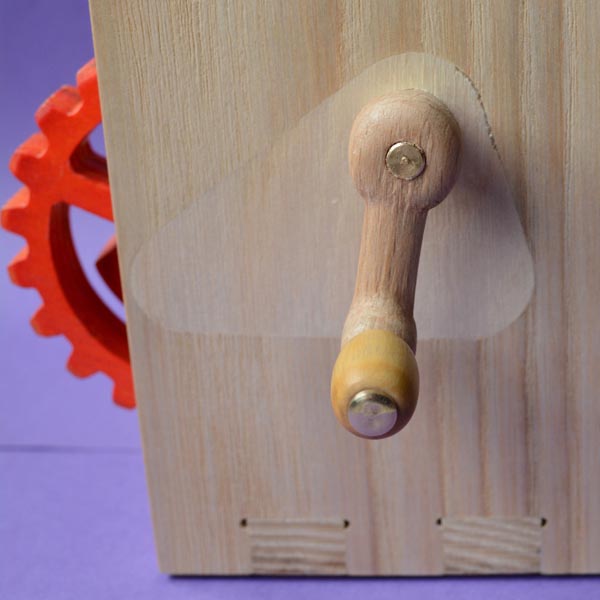

    The small turned boxwood handle spins on the crank handle.
    To prevent shrinkage of the wood in hot dry atmospheres interfering with the smooth running of the mechanism the 3 axles are held by birch plywood precisely fitted into the frame.

  • My Image

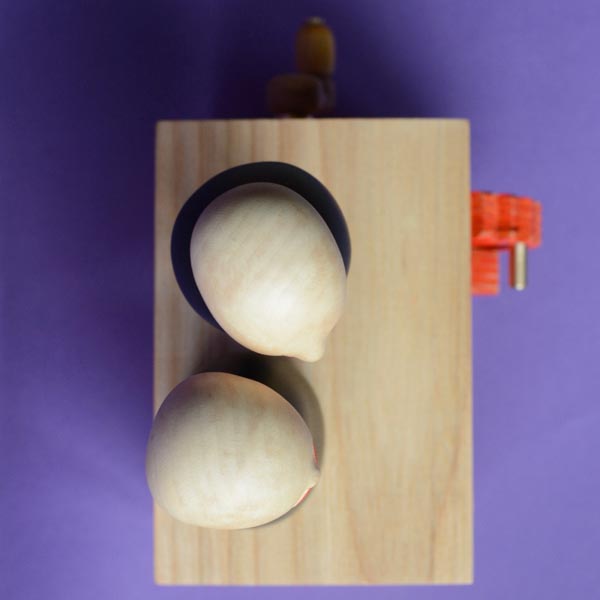

    Showing placement of the figures on the frame.
    See video of action below.

  • My Image

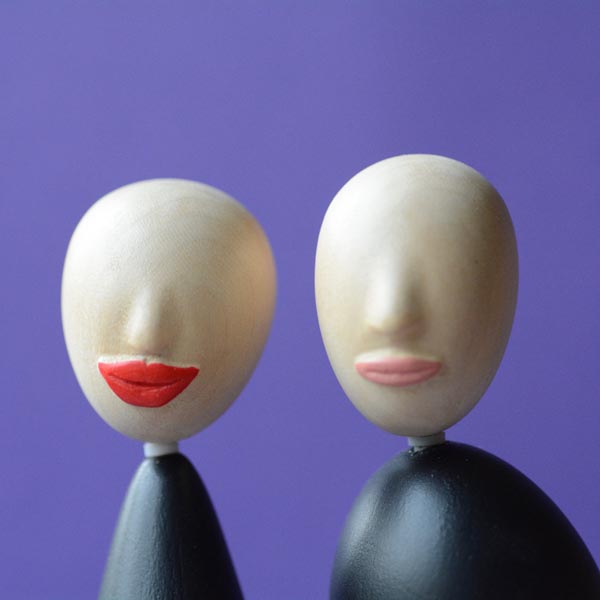

    Heads finished with 2 coats of gesso followed by white acrylic and then lightly airbrushed with flesh tones. Acrylic lacquer followed by acrylic flat varnish.
